B.S.A. WD charging set

History

Charging set E.D. 300 watt 30 volts

Having always wanted a spit/bang in the collection we jumped at the chance when a military charging set became available. The set was originally built in the 1950’s as a 12v unit identical to the WW2 version, then as military radios changed to 24v the generator was upgraded in 1960. Some time in the 1970’s it was put into storage along with at least 6 others, unfortunately due to poor maintenance regarding oil changing it was put into storage already seized.

We still have to source the 7 foot long flexible exhaust system.

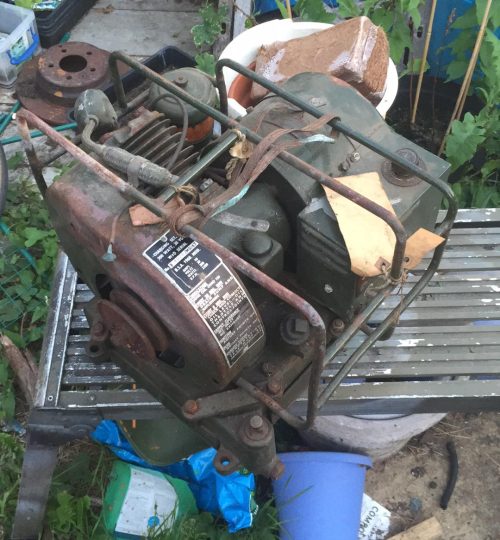

June 2020
June 2020

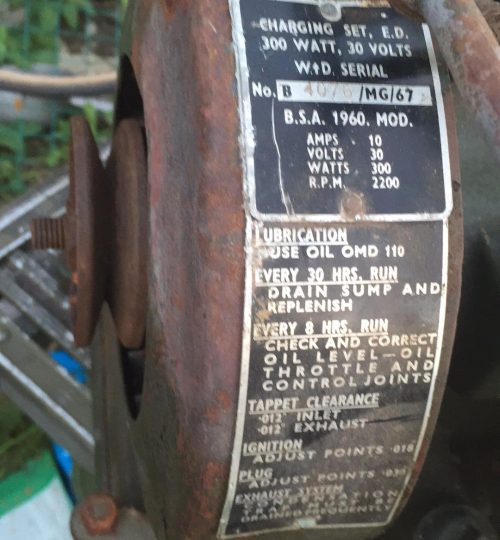

June 2020 instruction plate
June 2020 instruction plate

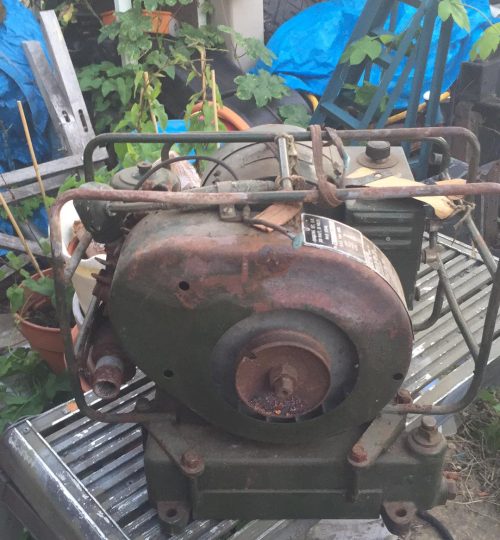

June 2020 starter pulley
June 2020 starter pulley

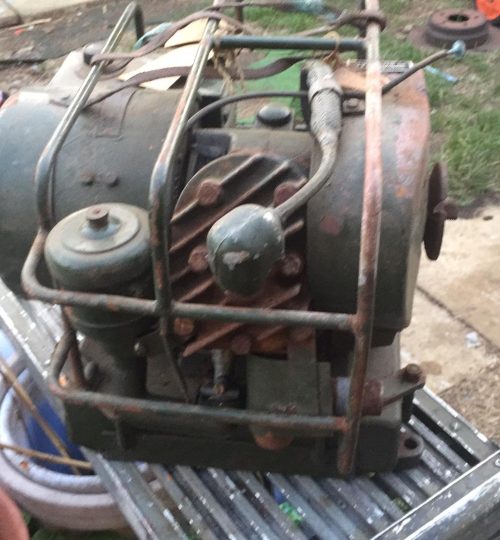

June 2020 suppressed spark plug
June 2020 suppressed spark plug

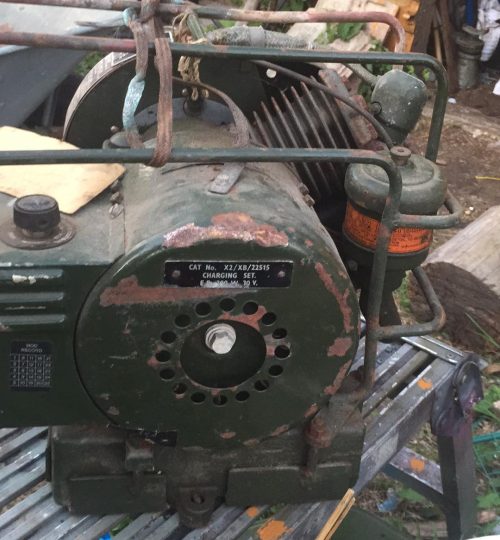

June 2020
June 2020

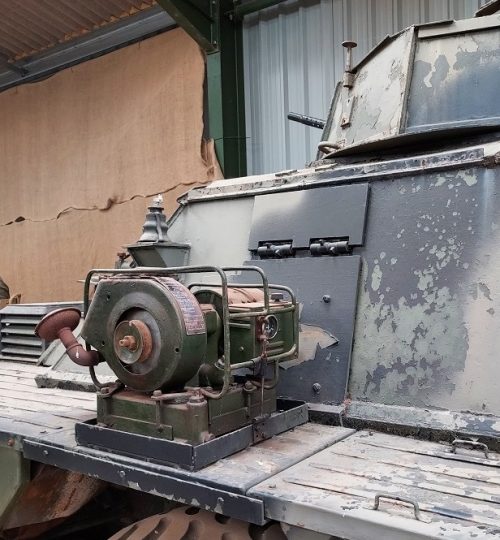

A Generator on a Saracen at Armageddon Museum
A Generator on a Saracen at Armageddon Museum

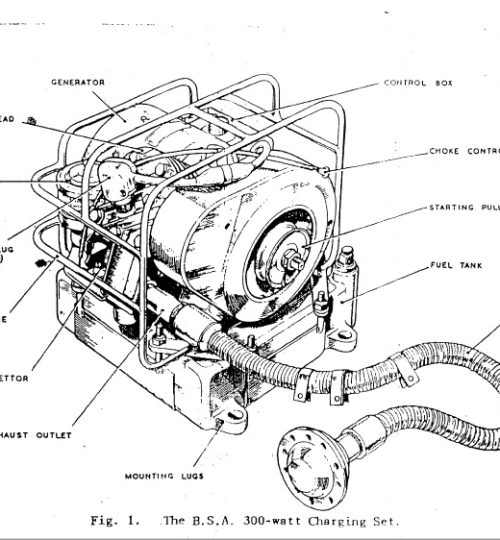

Drawing from hand book
Drawing from hand book

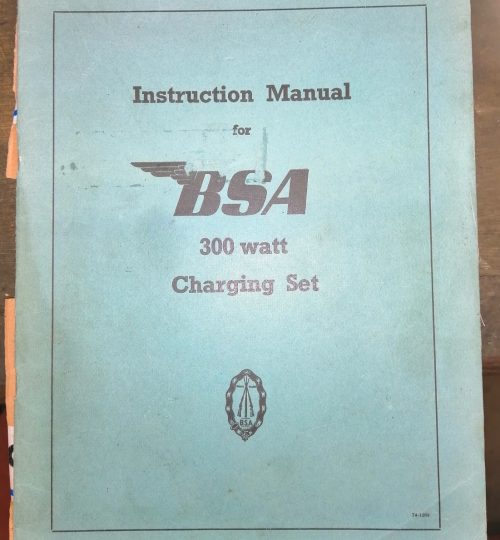

User Hand Book
User Hand Book
Previous
Next
Specification

B.S.A. war department charging set

Military charging set used for charging batteries for radios.
Engine: B.S.A. 4-stroke side valve single of 100cc
Generator: Service Type producing 30v D.C. 10amps.

Gasket making. Valve clearence set by the amount of gaskets fitted
Gasket making. Valve clearence set by the amount of gaskets fitted

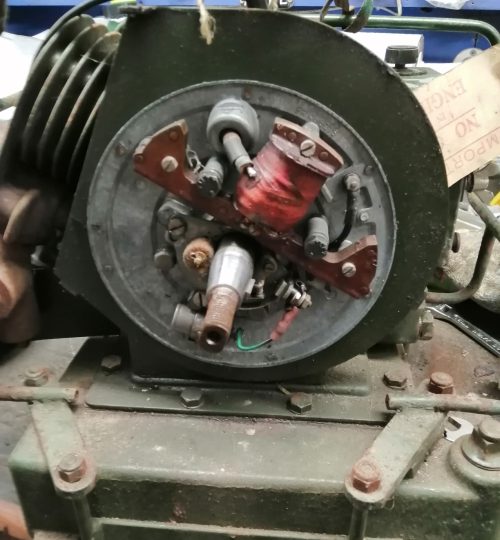

Ignition system
Ignition system

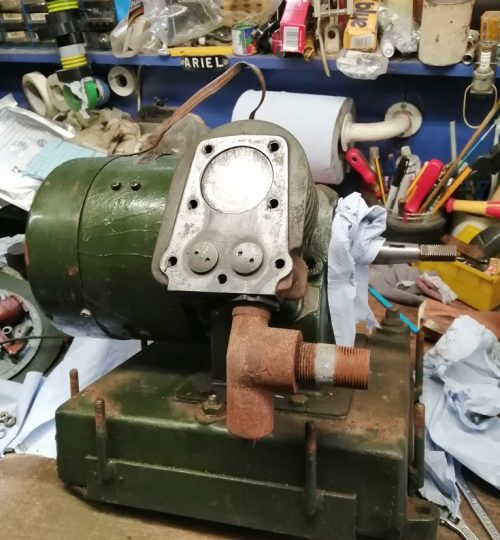

Head off, valves re-ground
Head off, valves re-ground

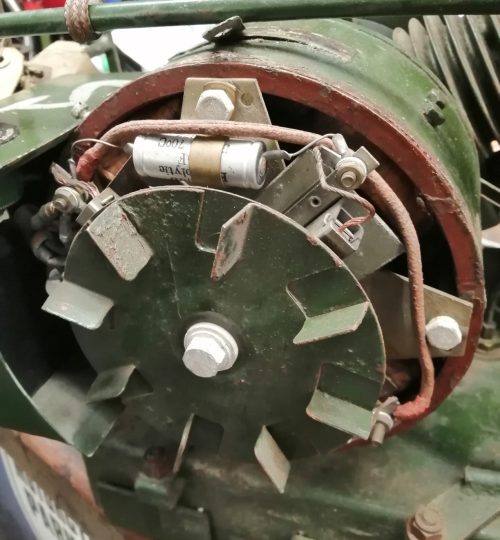

Generator fan
Generator fan

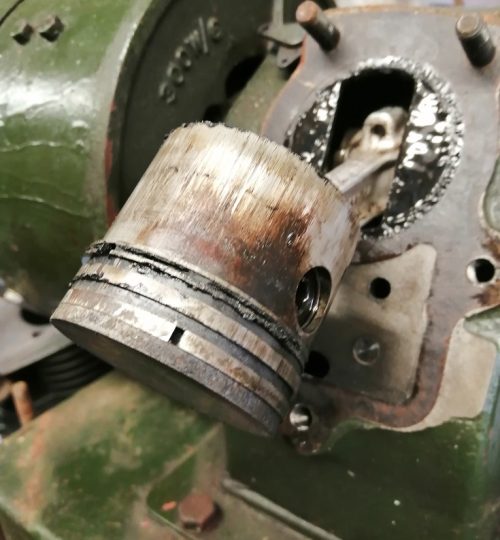

seized piston rings
seized piston rings

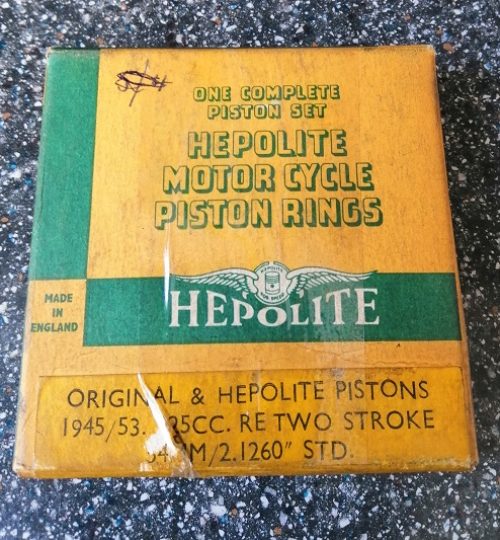

Enfield replacement rings as correct size and B.S.A. rings could not be found
Enfield replacement rings as correct size and B.S.A. rings could not be found
WD Charging set all finished
WD Charging set all finished
Previous
Next

link to pdf charging set manual
